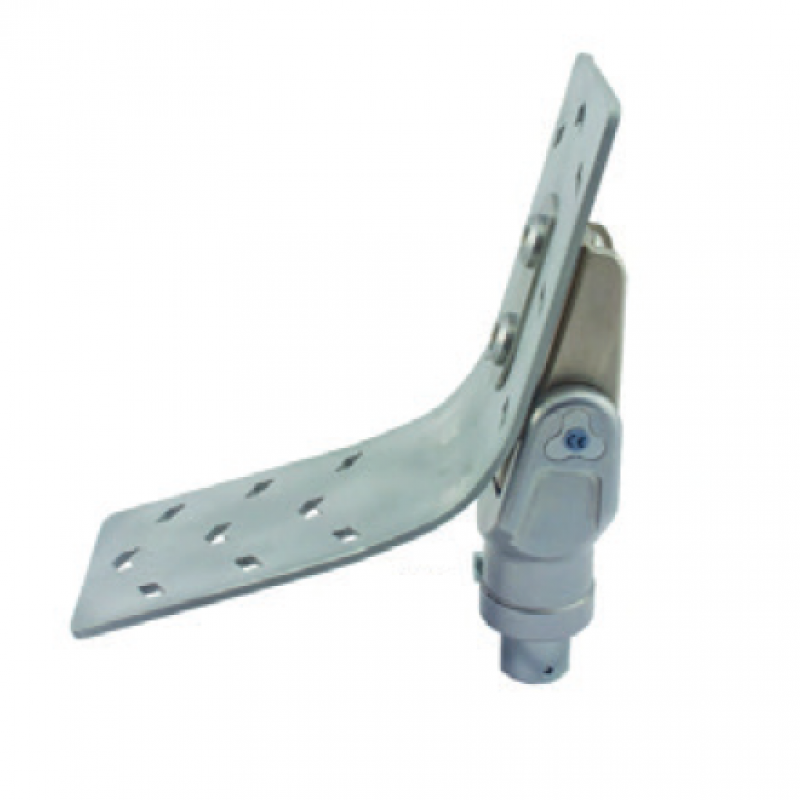

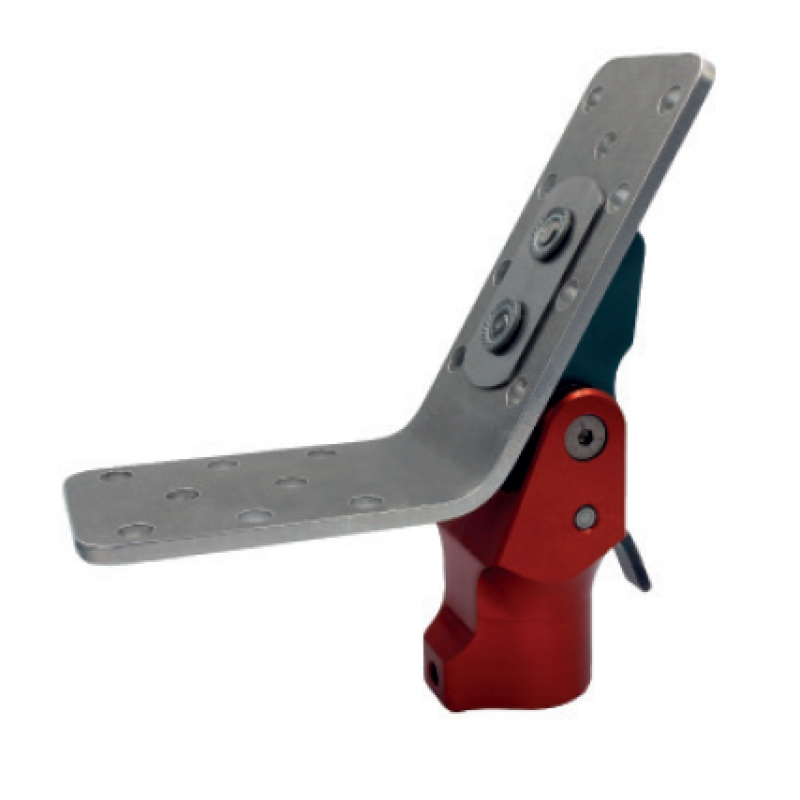

Stock Code: PR04.K7
Category: Hip Joints
Main Body Material | Alloyed Aluminium |
Flexion | 140° |
Product Weight | ~750 gr |
System Height | 130 mm |
Max. Body weight | 125 kg |
24 months limited warranty
Proted operates a quality management system that meets the requirements of ISO 13485 and 9001. Products are CE-marked and conform to standards and other normative documents outlined in the EC (CE) Declaration of Conformity
Monocentric Hydraulic Structure: Single-axis mechanical design that provides the user with a natural walking sensation.
Manually Adjustable Hydraulic Control: User-friendly hydraulic adjustment for flexion and extension movements.
Advanced Sealing Design: Unique engineering solution ensuring long-lasting and stable damping performance.
Flexion Angle: Wide range of motion up to 140° for high mobility.
Weight: Only 750 grams in the non-anchored version, 970 grams in the anchored version.
Build Height: Compact and user-friendly dimensions, 130 mm respectively.
Durable Body: Lightweight yet strong aluminum structure, offering high durability for daily use.
Monosentrik Hidrolik Yapı: Kullanıcıya doğal yürüyüş hissi sağlayan tek eksenli mekanik tasarım.
Manuel Ayarlanabilir Hidrolik Kontrol: Fleksiyon ve ekstansiyon hareketleri için kullanıcı dostu hidrolik ayar imkânı.
Gelişmiş Sızdırmazlık Tasarımı: Özgün mühendislik çözümüyle uzun ömürlü ve stabil sönümleme performansı.
Fleksiyon Açısı: 140°’ye kadar geniş hareket aralığı ile yüksek mobilite sağlar.
Ağırlık: Çapasız versiyonda sadece 750 gram, çapalı versiyonda 970 gram.
Kurulum Yüksekliği: Sırasıyla 130 mm kompakt ve kullanıcıya uygun ölçüler.
Dayanıklı Gövde: Hafif ama sağlam alüminyum yapı, günlük kullanıma karşı yüksek dayanıklılık.
